—— The main features of CNG MP48 ECU conversion kit
CNG LPG MP48 ECU kit is designed for 3-4 cylinders multipoint timed sequential injection engines. While running on gas,
MP48 ECU considers the petrol injection time and the pressure on the rail to calculate the equivalent amount of gas
to be injected in the intake manifold，to replicate the performance of the engine runningon petrol MP48 ECU is
equipped with a diagnosis system on every Gas component,whose status can be monitored by the calibration software
during the installation of the system and at any moment of the engine lifetime. This feature may preventmal functioning
problems and makes technical interventions easier.Thanks to the combination of MP48 and PTMAP sensor, the installation
steps are further simplified and the costs highly reduced. MP48’s compact case favors an easy installation of the ECU inside
the engine compartment. MP48 ECU is equipped with a 48-PIN new generation automotive connector, with an IP high
protection degree (6K9K) against water infiltrations and an easy leverage system for cable connection/disconnection.
—— The main features of CNG MP48 ECU conversion kit (NT601)

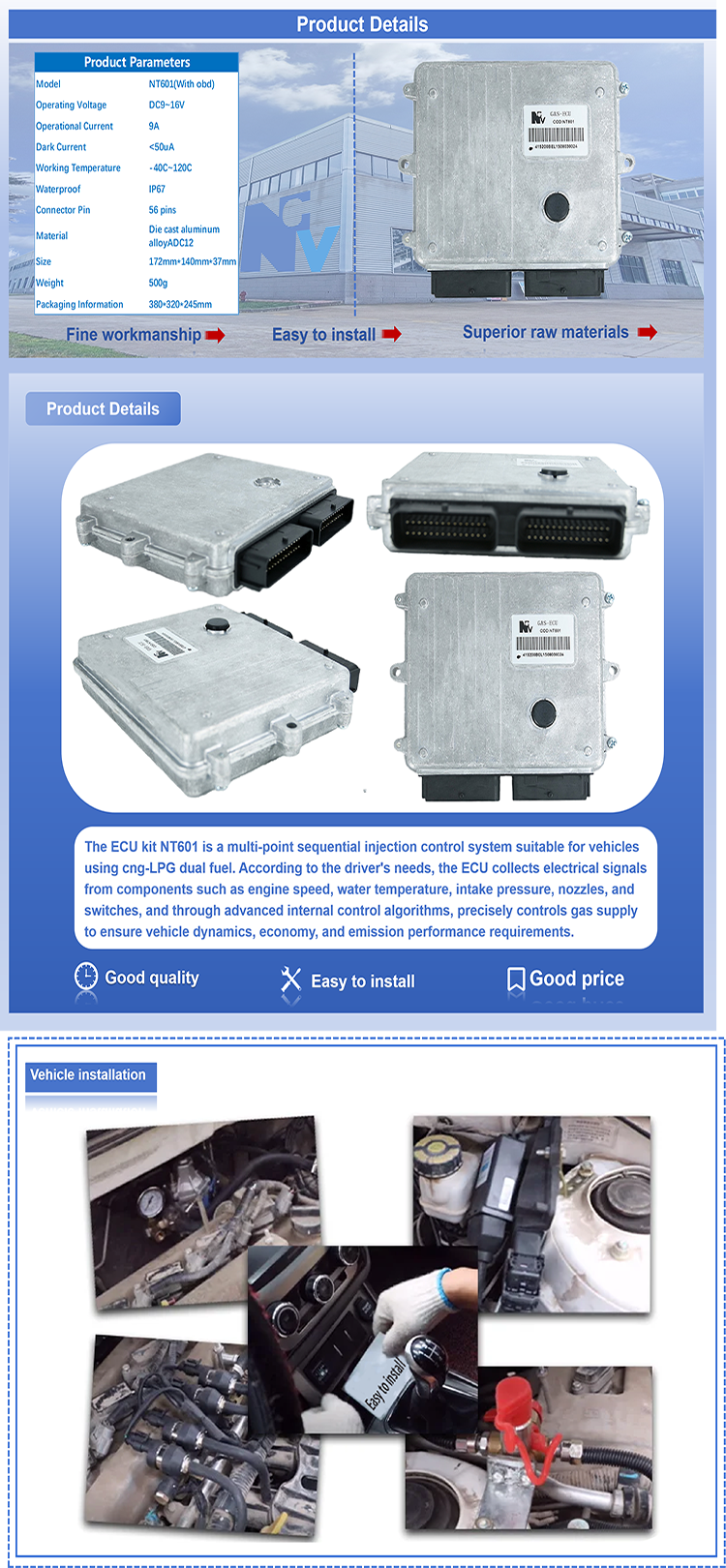

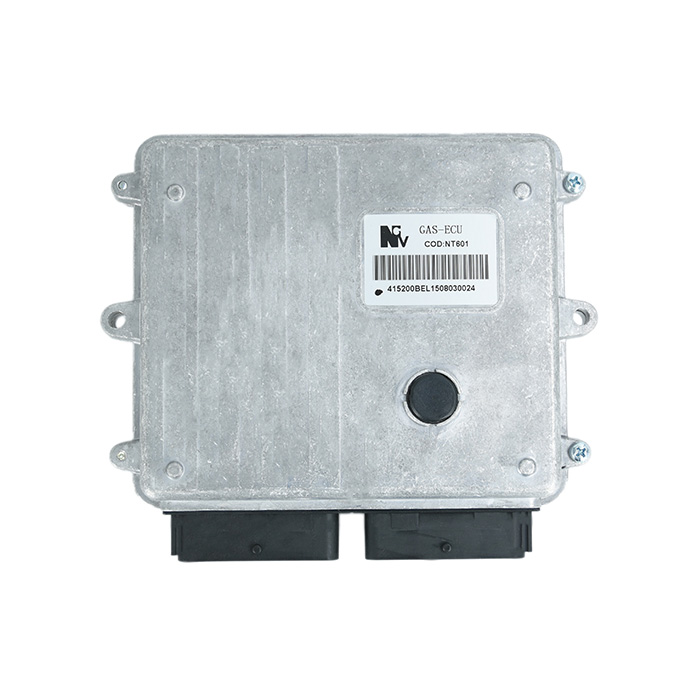

ECU KIT NT601 is a set of automotive multi-point sequential injection control system suitable for vehicles using gasoline
CNG LPG dual fuel.using CNG-LPG fuel.According to the needs of the driver, the ECU through collecting engine speed,
water temperature,intake pressure, gas pressure and gas temperature, gasoline nozzle, switch and other components of
electrical signals, and through the internal advanced control algorithm, including gas automatic calibration and learning
algorithm, etc., accurate control of gas supply, ensure the vehicle dynamics, economy and emission performance requirements.
Different series offer different discounted prices. For more information, please contact us.
